Building Mobile E-Commerce Apps: Architecture and UX
Mobile commerce in Australia reached $35 billion in 2022, and the trajectory is clear: more transactions are moving to mobile every quarter. Yet the gap between average and excellent mobile shopping experiences remains enormous. Apps with optimised checkout flows convert at 3-4x the rate of those with friction-filled processes.
Building a successful e-commerce app is not just about displaying products and accepting payments. It requires thoughtful architecture that handles complex state (carts, inventory, pricing), a UX that reduces friction at every step, and infrastructure that performs under load. This guide covers the technical and design decisions that separate high-converting apps from digital catalogues.

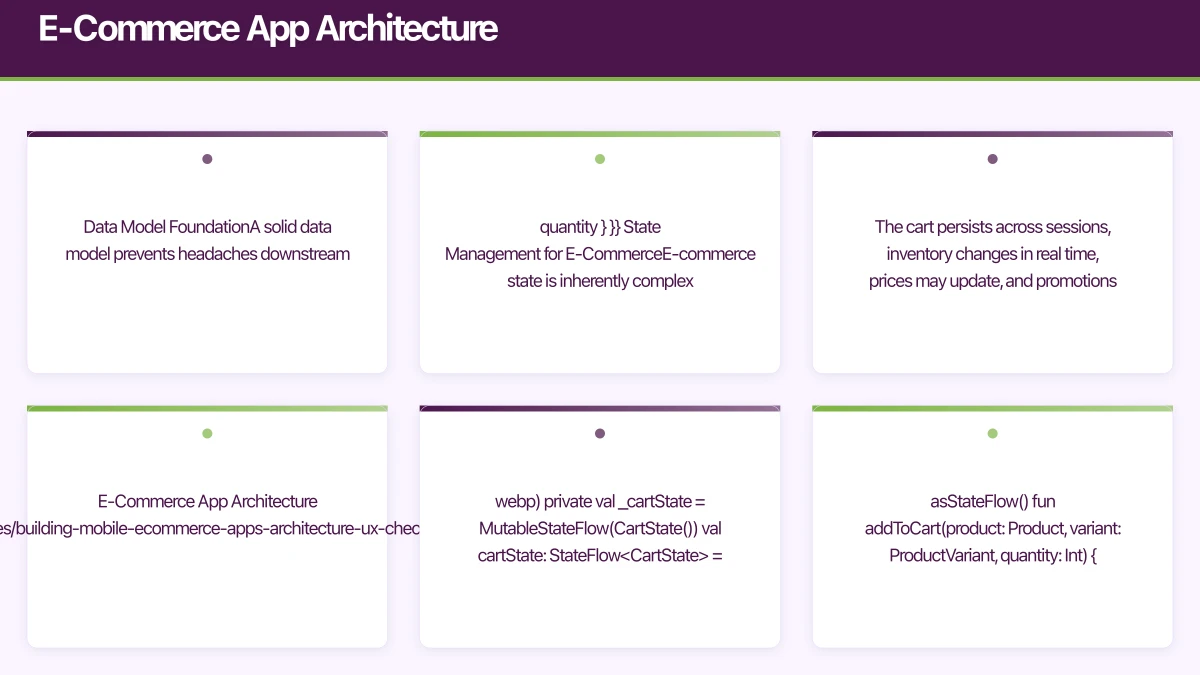

E-Commerce App Architecture
Data Model Foundation
A solid data model prevents headaches downstream. Here are the core entities and their relationships:
// Core domain models
struct Product: Identifiable, Codable {
let id: String
let name: String
let description: String
let price: Decimal
let compareAtPrice: Decimal?
let images: [ProductImage]
let variants: [ProductVariant]
let inventory: InventoryStatus
let category: Category
let tags: [String]
var isOnSale: Bool {
guard let compareAt = compareAtPrice else { return false }
return price < compareAt
}
var savingsPercentage: Int? {
guard let compareAt = compareAtPrice, compareAt > 0 else { return nil }
return Int(((compareAt - price) / compareAt) * 100)
}
}
struct CartItem: Identifiable {
let id: String
let product: Product
let variant: ProductVariant
var quantity: Int
let addedAt: Date
var lineTotal: Decimal {
product.price * Decimal(quantity)
}
}
struct Cart {
var items: [CartItem]
let currencyCode: String = "AUD"
var subtotal: Decimal {
items.reduce(0) { $0 + $1.lineTotal }
}
var gst: Decimal {
subtotal / 11 // GST is 1/11th of the GST-inclusive price in Australia
}
var itemCount: Int {
items.reduce(0) { $0 + $1.quantity }
}
}State Management for E-Commerce
E-commerce state is inherently complex. The cart persists across sessions, inventory changes in real time, prices may update, and promotions apply conditionally. A centralised state approach works best:
// Android ViewModel with comprehensive cart state
class CartViewModel(
private val cartRepository: CartRepository,
private val inventoryService: InventoryService,
private val promotionEngine: PromotionEngine
) : ViewModel() {
private val _cartState = MutableStateFlow(CartState())
val cartState: StateFlow<CartState> = _cartState.asStateFlow()
fun addToCart(product: Product, variant: ProductVariant, quantity: Int) {
viewModelScope.launch {
// Check inventory before adding
val available = inventoryService.checkAvailability(
variant.id, quantity
)
if (!available) {
_cartState.update {
it.copy(error = "Only ${variant.stockCount} available")
}
return@launch
}
val updatedCart = cartRepository.addItem(
product, variant, quantity
)
// Recalculate promotions
val promotions = promotionEngine.evaluate(updatedCart)
_cartState.update {
it.copy(
cart = updatedCart,
appliedPromotions = promotions,
error = null
)
}
}
}
}
data class CartState(
val cart: Cart = Cart(emptyList()),
val appliedPromotions: List<Promotion> = emptyList(),
val shippingOptions: List<ShippingOption> = emptyList(),
val selectedShipping: ShippingOption? = null,
val error: String? = null,
val isProcessing: Boolean = false
)Offline Cart Support
Users add items to their cart while browsing on the train, then check out when they have reliable connectivity. Your cart must work offline:
class CartPersistence {
private let userDefaults = UserDefaults.standard
private let cartKey = "persisted_cart"
func save(_ cart: Cart) {
if let data = try? JSONEncoder().encode(cart) {
userDefaults.set(data, forKey: cartKey)
}
}
func load() -> Cart? {
guard let data = userDefaults.data(forKey: cartKey),
let cart = try? JSONDecoder().decode(Cart.self, from: data) else {
return nil
}
return cart
}
// Sync local cart with server when online
func sync() async throws {
guard let localCart = load() else { return }
let serverCart = try await cartAPI.merge(localCart)
// Server cart is authoritative for prices and inventory
save(serverCart)
NotificationCenter.default.post(
name: .cartSynced,
object: serverCart
)
}
}Product Discovery UX
Search That Works
Product search is the highest-intent action in an e-commerce app. Users who search convert at 2-3x the rate of browsers. Invest heavily here:
struct SearchView: View {
@StateObject private var viewModel = SearchViewModel()
var body: some View {
VStack(spacing: 0) {
// Search bar with instant suggestions
SearchBar(text: $viewModel.query, isActive: $viewModel.isSearching)
if viewModel.isSearching {
if viewModel.query.isEmpty {
// Recent searches and trending
RecentSearchesView(
searches: viewModel.recentSearches,
onSelect: { viewModel.query = $0 }
)
} else if viewModel.isLoading {
ProgressView()
} else {
// Search results with filters
SearchResultsView(
results: viewModel.results,
filters: viewModel.availableFilters,
appliedFilters: $viewModel.appliedFilters
)
}
}
}
}
}Key search features:
- Autocomplete suggestions as users type (debounce at 300ms)
- Typo tolerance — “nihke” should find Nike products
- Search-as-you-type with instant results
- Filter facets generated from search results (size, colour, price range)
- Recent searches for quick repeat access
Product Listing Performance
Product grids must scroll smoothly with hundreds of items. Use lazy loading with pagination:
@Composable
fun ProductGrid(viewModel: ProductListViewModel) {
val products by viewModel.products.collectAsState()
val isLoadingMore by viewModel.isLoadingMore.collectAsState()
val listState = rememberLazyGridState()
// Detect when user scrolls near the end
LaunchedEffect(listState) {
snapshotFlow { listState.layoutInfo }
.collect { layoutInfo ->
val totalItems = layoutInfo.totalItemsCount
val lastVisibleIndex = layoutInfo.visibleItemsInfo.lastOrNull()?.index ?: 0
if (lastVisibleIndex >= totalItems - 6) {
viewModel.loadNextPage()
}
}
}
LazyVerticalGrid(
columns = GridCells.Fixed(2),
state = listState,
contentPadding = PaddingValues(8.dp)
) {
items(products, key = { it.id }) { product ->
ProductCard(
product = product,
onTap = { viewModel.navigateToProduct(product) },
onAddToCart = { viewModel.quickAddToCart(product) }
)
}
if (isLoadingMore) {
item(span = { GridItemSpan(2) }) {
CircularProgressIndicator(
modifier = Modifier.padding(16.dp)
)
}
}
}
}Checkout Optimisat
ion
Checkout is where revenue is won or lost. Every additional step reduces conversion by 10-15%.
The Ideal Checkout Flow
- Cart review (one screen, editable quantities)
- Shipping address (with address autocomplete for Australian addresses)
- Shipping method selection
- Payment (Apple Pay / Google Pay prominently featured)
- Confirmation
For returning users, collapse steps 2 and 3 into a single “confirm saved details” step.
Address Autocomplete for Australia
Use the Google Places API or Australia Post’s address validation API to reduce friction:
class AddressAutocompleteService {
private let placesClient = GMSPlacesClient.shared()
func autocomplete(query: String) async -> [AddressSuggestion] {
let filter = GMSAutocompleteFilter()
filter.countries = ["AU"]
filter.types = ["address"]
return await withCheckedContinuation { continuation in
placesClient.findAutocompletePredictions(
fromQuery: query,
filter: filter,
sessionToken: nil
) { predictions, error in
let suggestions = (predictions ?? []).map { prediction in
AddressSuggestion(
placeId: prediction.placeID,
primaryText: prediction.attributedPrimaryText.string,
secondaryText: prediction.attributedSecondaryText?.string ?? ""
)
}
continuation.resume(returning: suggestions)
}
}
}
}Payment Integration
Offer the fastest payment methods first. Apple Pay and Google Pay reduce checkout to a single biometric confirmation:
struct CheckoutPaymentView: View {
@ObservedObject var viewModel: CheckoutViewModel
var body: some View {
VStack(spacing: 16) {
// Express checkout options first
if viewModel.isApplePayAvailable {
PayWithApplePayButton(action: {
viewModel.payWithApplePay()
})
.frame(height: 50)
HStack {
Rectangle().fill(Color.gray.opacity(0.3)).frame(height: 1)
Text("or pay with card").font(.caption).foregroundColor(.secondary)
Rectangle().fill(Color.gray.opacity(0.3)).frame(height: 1)
}
}
// Card payment form
CardPaymentForm(
cardNumber: $viewModel.cardNumber,
expiry: $viewModel.expiry,
cvc: $viewModel.cvc,
name: $viewModel.cardName
)
// Order summary
OrderSummaryView(cart: viewModel.cart)
Button(action: { viewModel.processPayment() }) {
HStack {
if viewModel.isProcessing {
ProgressView().tint(.white)
}
Text("Pay $\(viewModel.total, specifier: "%.2f") AUD")
}
.frame(maxWidth: .infinity)
.padding()
.background(Color.blue)
.foregroundColor(.white)
.cornerRadius(12)
}
.disabled(viewModel.isProcessing)
}
.padding()
}
}GST Display for Australian Compliance
Australian consumer law requires clear pricing. Display GST-inclusive prices throughout, with GST amounts shown at checkout:
struct OrderSummaryView: View {
let cart: Cart
var body: some View {
VStack(alignment: .leading, spacing: 8) {
HStack {
Text("Subtotal")
Spacer()
Text("$\(cart.subtotal, specifier: "%.2f")")
}
if let shipping = cart.selectedShipping {
HStack {
Text("Shipping")
Spacer()
Text(shipping.price == 0
? "Free"
: "$\(shipping.price, specifier: "%.2f")")
}
}
Divider()
HStack {
Text("Total (incl. GST)")
.fontWeight(.bold)
Spacer()
Text("$\(cart.total, specifier: "%.2f")")
.fontWeight(.bold)
}
Text("Includes $\(cart.gst, specifier: "%.2f") GST")
.font(.caption)
.foregroundColor(.secondary)
}
.padding()
.background(Color(.systemGray6))
.cornerRadius(12)
}
}Performance Under Load
E-commerce apps experience traffic spikes during sales events. Your architecture must handle sudden load increases:
- CDN for images: Product images are your heaviest assets. Serve them from a CDN with Australian edge locations.
- Cache product catalogues: Products change infrequently. Cache aggressively on the client and use ETags for validation.
- Inventory checks at checkout, not browse: Checking real-time inventory for every product listing creates unnecessary load. Check at add-to-cart and again at checkout.
- Queue payment processing: During peak load, queue payment requests rather than failing. Show users a “processing” state.
Building a mobile e-commerce app that converts well requires equal investment in architecture and user experience. The technical decisions around state management, caching, and payment integration directly impact the conversion metrics your business cares about. Get both right, and you build a revenue engine that scales.
